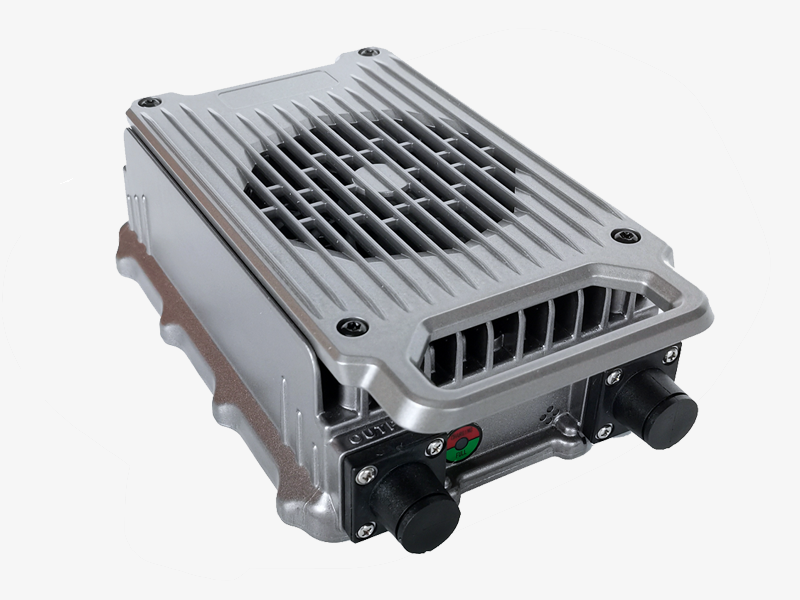

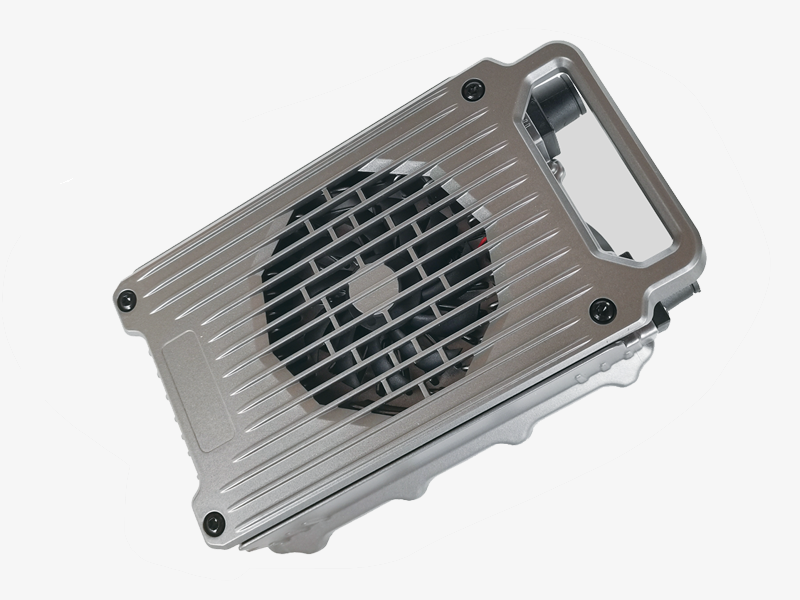

SMCN12 Series(1200W)
AC input voltage range:AC90~264V;
AC input frequency range:40~70Hz;
With APFC function,power factor:≥0.99;
Soft switching technology,efficiency:≥90%;
Protection level:IP65;
Charger mode:Adjustable dynamic charging curve;
CAN communication function:Optional;
LED light indicator for charging process:Standard;
Operating temperature:-30℃~+65℃;
Storage temperature:-40℃~+95℃;
Noise:≤45dB;
Overall size:273*161*90.5(mm);
Net weight:2.7kg.
Related products
Specifications and models | Input Voltage Range | Rated Output Voltage | Max Output voltage | Max Output Current |
SMCN12-4825A | AC90-264V | 48V | 60V | 25A |
SMCN12-6020A | AC90-264V | 60V | 75V | 20A |
SMCN12-7215A | AC90-264V | 72V | 90V | 15A |
