SMCN20-2425A

AC 90~264V

24V

33.0V

25A

SMCN20-3625A

AC 90~264V

36V

49.5V

25A

SMCN20-4820A

AC 90~264V

48V

66.0V

20A

SMCN20-6020A

AC 90~264V

60V

82.5V

20A

SMCN20-7215A

AC 90~264V

72V

99.0V

15A

SMCN20-8412A

AC 90~264V

84V

115.5V

12A

Ac Input Wide Voltage，Range: AC90V~264V;

AC Input Frequency Range: 40~70Hz

With APFC function，Power Factor:≥ 0.98

Soft Switching Technology，Efficiency:≥ 93.0%

Protection Level: IP67

Operating Temperature: - 40 ℃ ~ + 60 ℃

Storage Temperature:- 55 ℃ ~ + 100 ℃

CAN Communication Function (optional)

12V5A Auxiliary Power Supply (optional)

LED Light Indicator for Charging Process

Noise: ≤45 db

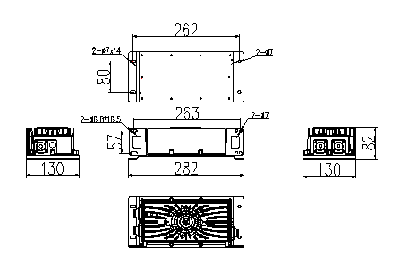

Overall Size: 335 ×192×106 (mm)

Net Weight: 4.5kg

1、Overheat Protection:

when the internal temperature of the charger exceeds 80 ℃, the charging current will reduce automatically. When it exceeds 85 ℃, the charger shutdown for protection. When the temperature drop, the charger automatically resumes to charge.

2、Short Circuit Protection:

when the output short circuit, the charger will automatically shut down the output. After troubleshooting, the battery can be reconnected to resume charging.

3、Battery Reverse Connection Protection:

when the battery is reverse connected, the internal circuit of the charger will automatically disconnect from the battery, without charging, without damaging the charger.

4、Input low-voltage ＆Over-voltage Protection:

If the input voltage is lower than 90V or higher than 264V, the charger will shut down protectively and automatically resume working with the voltage is normal again.

5、Full Automatic Shutdown:

Automatically shut down after full charge.
