SMCN30-4850A

AC 90~264V

48V

60V

50A

SMCN30-7240A

AC 90~264V

72V

90V

40A

Ac Input Wide Voltage，Range: AC90V~264V;

AC Input Frequency Range: 40~70Hz

With APFC function，Power Factor:≥ 0.99

Soft Switching Technology，Efficiency:≥ 90.0%

Protection Level: IP65

Operating Temperature: - 30 ℃ ~ + 65 ℃

Storage Temperature:- 40 ℃ ~ + 95 ℃

CAN Communication Function (optional)

12V5A Auxiliary Power Supply (optional)

LED Light Indicator for Charging Process

Noise: ≤45 db

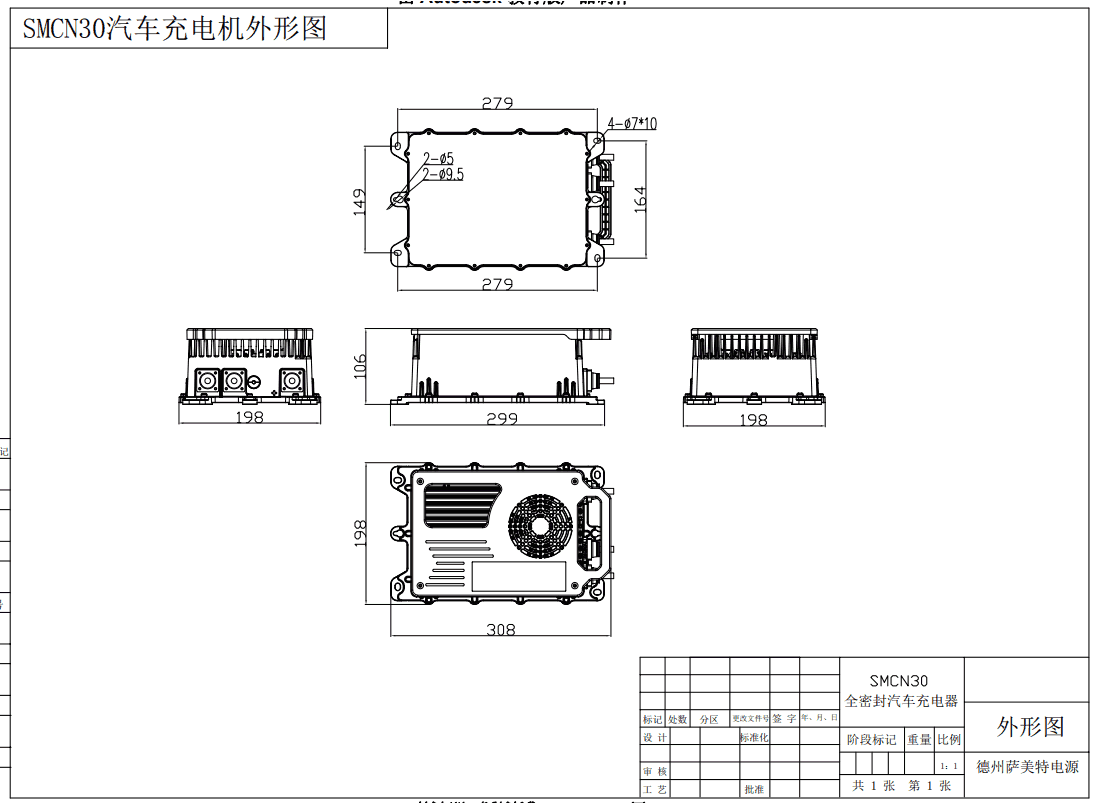

Overall Size: 308×198×106(mm)

Net Weight: 6.2kg

1、Overheat Protection:

when the internal temperature of the charger exceeds 80 ℃, the charging current will reduce automatically. When it exceeds 85 ℃, the charger shutdown for protection. When the temperature drop, the charger automatically resumes to charge.

2、Short Circuit Protection:

when the output short circuit, the charger will automatically shut down the output. After troubleshooting, the battery can be reconnected to resume charging.

3、Battery Reverse Connection Protection:

when the battery is reverse connected, the internal circuit of the charger will automatically disconnect from the battery, without charging, without damaging the charger.

4、Input low-voltage ＆Over-voltage Protection:

If the input voltage is lower than 90V or higher than 264V, the charger will shut down protectively and automatically resume working with the voltage is normal again.

5、Full Automatic Shutdown:

Automatically shut down after full charge.
